Username Post: Fan shield        (Topic#360439)
ufbugman
Newbie
Posts: 9

Reg: 03-23-20
04-07-20 11:46 AM - Post#2790557

I got a project car and the stock fan shield is in 2 pieces , how are they held together welded or am I missing something fan shield for engine

1964 impala 327 auto



Edited by ufbugman on 04-07-20 03:58 PM. Reason for edit: No reason given.




pvs409
"8th Year" Gold Supporting Member
Posts: 2872
pvs409
Loc: Sergeant Bluff, Iowa
Reg: 01-10-05
04-07-20 03:41 PM - Post#2790578
    In response to ufbugman

what year and engine -can't help without this information


57 BelairHT 283/270hp 4 spd
62 ImpHT 327/300 4 spd
62 Imp CV SS 327/300HP 700R4 (sold)
62 Imp HT SS 409/482 stroker 4 spd
62 Imp SS 409 - 5 spd Convertible
http://paulstensland.com



ufbugman
Newbie
Posts: 9

Reg: 03-23-20
04-07-20 03:53 PM - Post#2790580
    In response to ufbugman

64 impala 327





Verne_Frantz
Member #574 "61-64 Subject Matter Expert"
Posts: 5757
Verne_Frantz
Loc: Hightstown,NJ USA
Reg: 08-22-00
04-07-20 07:42 PM - Post#2790610
    In response to ufbugman

You must be talking about the fan shroud, not a shield. They were produced in two halves and spot welded together.

Verne




dcairns
Frequent Contributor
Posts: 2118
dcairns
Loc: Orange CA
Reg: 11-07-03
04-07-20 08:18 PM - Post#2790616
    In response to ufbugman

Perhaps this photo will help.


At the top, you can see where the overlapping halves are spot welded together. This was early in my restoration, and I had just painted the shroud so it stands out nicely. Ignore the engine, it is non-original at this point.

- Dave
1964 Impala 4-door sedan




DCIMPALA
"3rd Year" Silver Supporting Member
Posts: 111
DCIMPALA
Age: 70
Loc: Atlantic Highlands, N.J.
Reg: 10-25-17
04-08-20 06:15 AM - Post#2790632
    In response to dcairns

Also the top flat section should have a letter stamped. My 64 with date stamps in April has letter D stamped on the shroud.




ufbugman
Newbie
Posts: 9

Reg: 03-23-20
04-08-20 05:50 PM - Post#2790675
    In response to DCIMPALA

that the info I needed thank you!




Highlander1
"5th Year" Silver Supporting Member
Posts: 1741
Highlander1
Loc: SE North Carolina
Reg: 08-19-04
04-09-20 11:18 AM - Post#2790726
    In response to DCIMPALA

Doug, good point. I'm doing a 63 and mine also has the letter D. Would have never noticed were it not for your post. Mine was also difficult to discern as it was partially on the roll in the stamping instead of being entirely on a flat surface. Must have been Friday afternoon or Monday morning... Don




Highlander1
"5th Year" Silver Supporting Member
Posts: 1741
Highlander1
Loc: SE North Carolina
Reg: 08-19-04
04-09-20 11:42 AM - Post#2790730
    In response to dcairns

Dave, like your fan/clutch upgrade - or was that part of the AC package? I have a 63 and am adding a seven blade fan and clutch from a 93 Caprice 9C1. In the process I learned that there are at least three different circumferences in the bolt patterns and the 9C3's was greater than either of the two patterns in the original water pump flange. Probably could have elongated them myself but this was no place to screw up and I paid a machinist to do it.

With the fan & clutch installed can you then install the radiator/shield or must the radiator/shield be installed first?

Thanks,

Don

PS Is this the car with the 327/300 engine?




dcairns
Frequent Contributor
Posts: 2118
dcairns
Loc: Orange CA
Reg: 11-07-03
04-09-20 01:15 PM - Post#2790743
    In response to Highlander1

That is stock fan blade and stock replacement clutch (Hayden, I think). My car was originally a 283 with AC, so it had the shroud and the 5 blade fan with clutch. The same is true for the 327 with AC (different radiator, though).

I did an experiment with the Heavy Duty variant of the Hayden clutch by modifying a fan blade's mounting holes to fit it. It did move more air, but was incredibly noisy and I think it even hurt performance. So that experiment did not work out well.

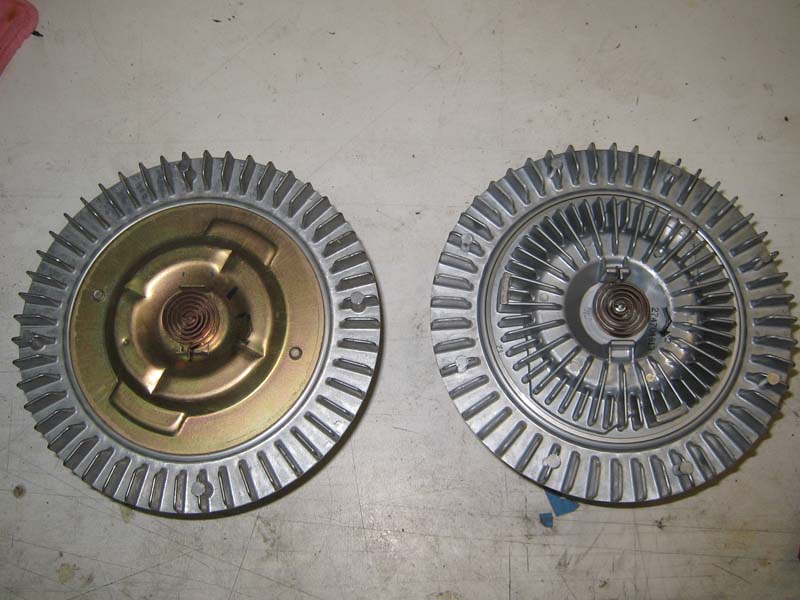

HD vs standard clutches (HD on the right)

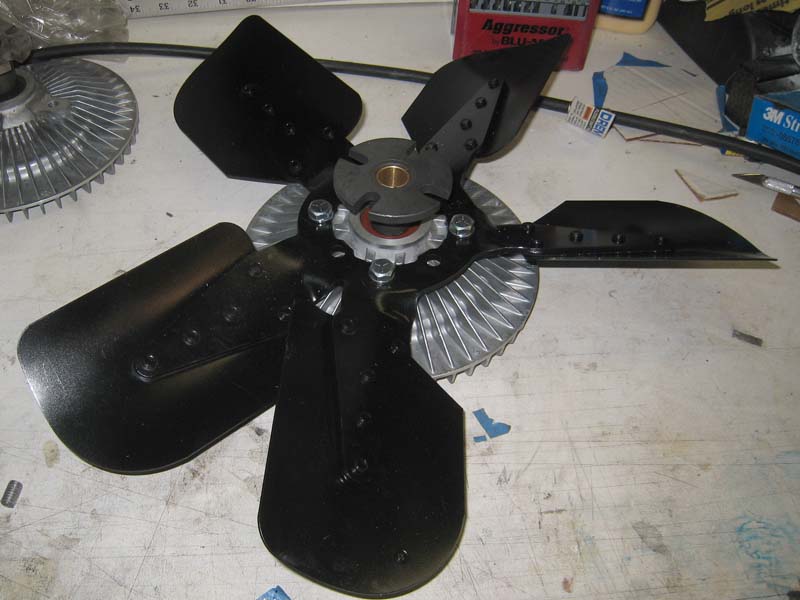

You can see the original bolt holes on the fan blade, new holes bolted to the clutch.


The shroud must be installed first, then the clutch/fan assembly can be installed.

And yes, this is my 64 that has the 327/300 (bored/stroked to 383) in it now. The picture above is with the old 350 based 383 I had in it from the late 80's.

Old 350 based 383:


New 327 based 383:


- Dave
1964 Impala 4-door sedan




pvs409
"8th Year" Gold Supporting Member
Posts: 2872
pvs409
Loc: Sergeant Bluff, Iowa
Reg: 01-10-05
04-09-20 02:56 PM - Post#2790761
    In response to Highlander1

  • Highlander1 Said:
Dave, like your fan/clutch upgrade - or was that part of the AC package? I have a 63 and am adding a seven blade fan and clutch from a 93 Caprice 9C1. In the process I learned that there are at least three different circumferences in the bolt patterns and the 9C3's was greater than either of the two patterns in the original water pump flange. Probably could have elongated them myself but this was no place to screw up and I paid a machinist to do it.

With the fan & clutch installed can you then install the radiator/shield or must the radiator/shield be installed first?

Thanks,

Don

PS Is this the car with the 327/300 engine?




I suggest another better way to install the fan and clutch.

Install the fan and clutch without the radiator and fan shroud in place(much easier than having the fan shroud in the way during installation of the fan and clutch.).
Hang the fan shroud over the fan (with a large towel) then install the radiator and fan shroud at the same time(probably need 4 hands to hold the radiator and fan shroud during installation).
I have done it this way at least 5 times...

Paul

57 BelairHT 283/270hp 4 spd
62 ImpHT 327/300 4 spd
62 Imp CV SS 327/300HP 700R4 (sold)
62 Imp HT SS 409/482 stroker 4 spd
62 Imp SS 409 - 5 spd Convertible
http://paulstensland.com



Verne_Frantz
Member #574 "61-64 Subject Matter Expert"
Posts: 5757
Verne_Frantz
Loc: Hightstown,NJ USA
Reg: 08-22-00
04-09-20 07:30 PM - Post#2790775
    In response to pvs409

I agree with Paul's method. But to do it with just 2 hands, make some 5/16-18 studs and screw them into the lower holes in the radiator support. Hang the radiator on them, then hold the top of the radiator with one hand and lift the shroud in place with the other hand. Then start the bolts.

Verne
