Username Post: Finishing the 48 4 door        (Topic#342707)
CallMeChris
Forum Newbie
Posts: 10
CallMeChris
Age: 39
Loc: Arkansas
Reg: 02-17-17
02-17-17 01:46 AM - Post#2677088

Just got myself properly introduced in the new members check in forum so figured I would get this started here. I turn 40 this year and I've wanted an "old car" to play with since I was 16 (probably before then). The closest I came was a 65 chevy stepside at a time in my life I didn't have the time/money/space for a project so it didn't last long. I've been seriously browsing for a few months now and came across a project that a man was working on and his grandson inherited it before he finished. Went and looked at it a couple times, made a deal, and now I'm the proud new owner! It's a 48 4 door stylemaster that has had LOTS of work finished and not much left to do. Here is a list of what's done off the top of my head, I'll have to go back to the records to see what I'm missing.

-Body was pulled off and frame and underside was cleaned and coated with POR15.
-Chassis Engineering mustang 2 front end with disc brakes
-Chassis Engineering rear suspension
-Camaro rear end with 3.22 gears
-All new brake and fuel lines
-New 18 gallon steel gas tank

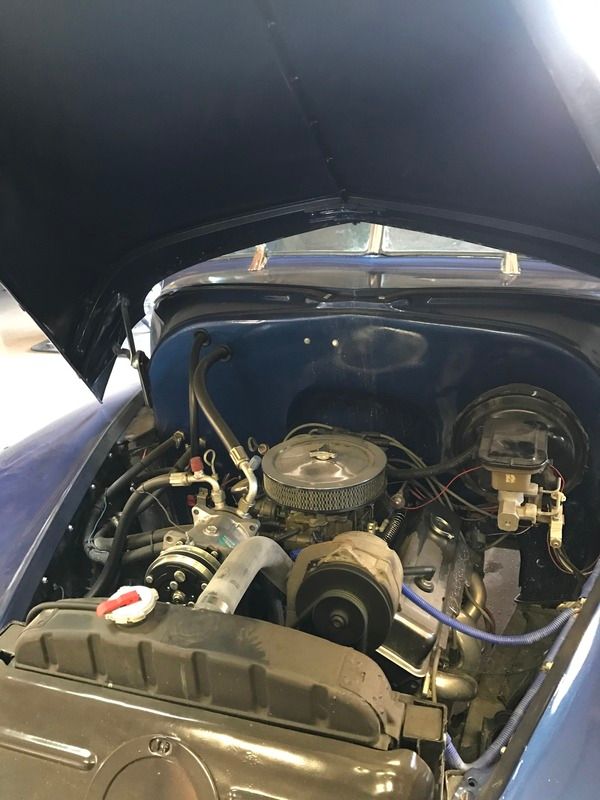

-305 from an 84 IROK camaro with mild cam and headers
-700R4 trans rebuilt with shift kit hydraulic conversion on the kickdown cable

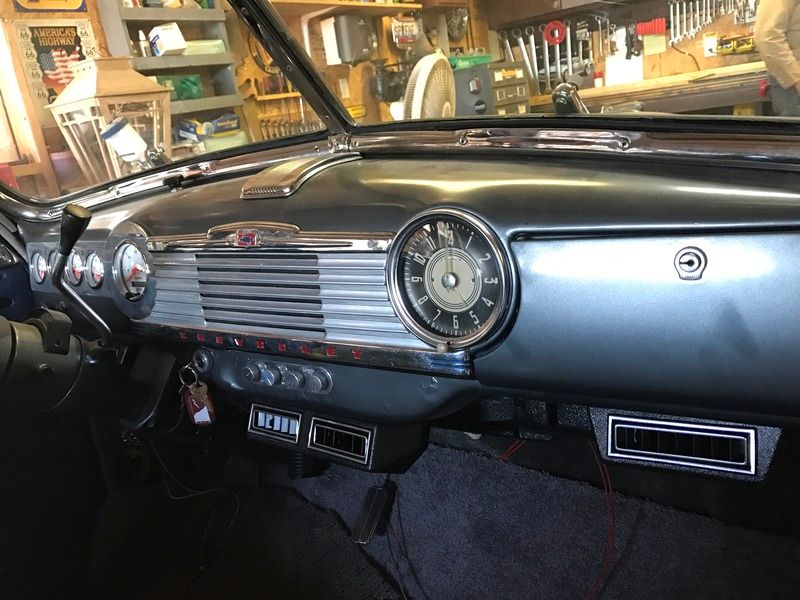

-Vintage air AC and heat

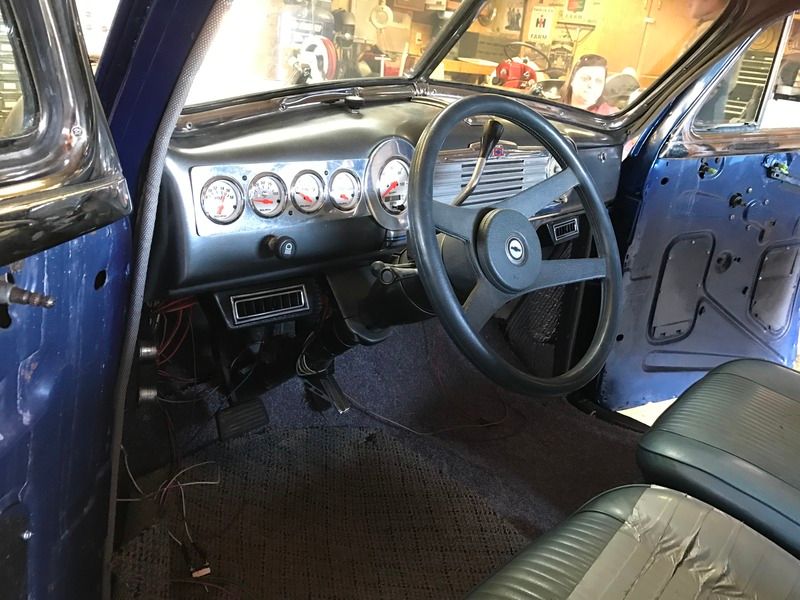

-Autometer gauges
-Steering column with tilt
-All chrome is either new or re chromed
-New paint
-New rims with factory hubcaps
-New tires
-Painless wiring harness
-All door handles rebuilt

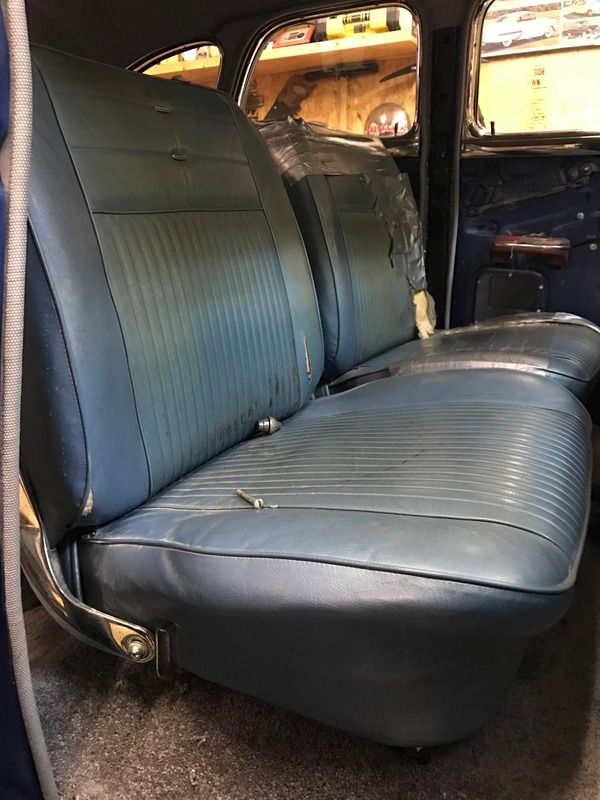

-Front bucket seats from a Nova

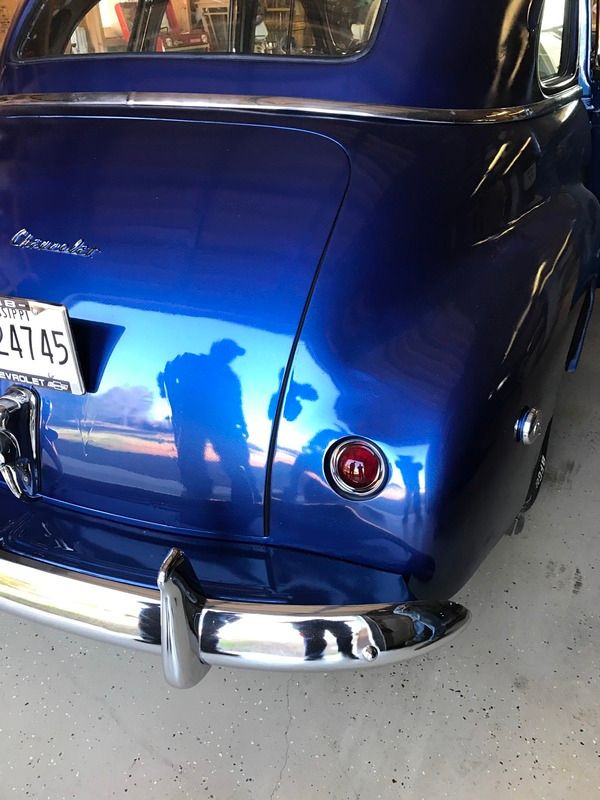

-Rear tail lights frenched in
-Rain gutters filled and feathered
-Rear fenders welded on and feathered
-Firewall smoothed
-All new glass and seals
-Battery ran into the trunk


Things needing finished are:
-oil pressure gauge and speedo aren't working
-Exhaust needs to be ran from the mufflers back
-Paint was never wet sanded after it was sprayed. -There are a couple runs and trash in the clear coat as well as a couple small spots that will need to be touched up

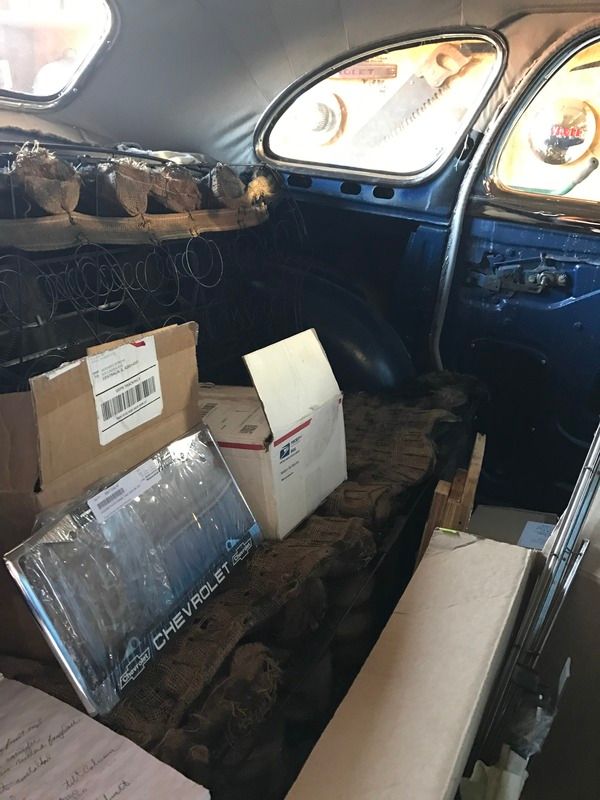

-Interior needs to be done

And that's about it. I couldn't be happier with it...I love the looks of the 2 door but the 4 door will be fantastic hauling the kids around. This will take a while to get everything finished for me since I'm working on a time and money budget but I really hope to have it finished this year. My goal is not to end up with a trailer queen show car even though I'd love to show up at some cruze ins with it but I want something I can hop in and drive a couple hundred miles for a weekend getaway and not worry about breaking down or keeping up with the freeway traffic. I think I'm well on my way for that.

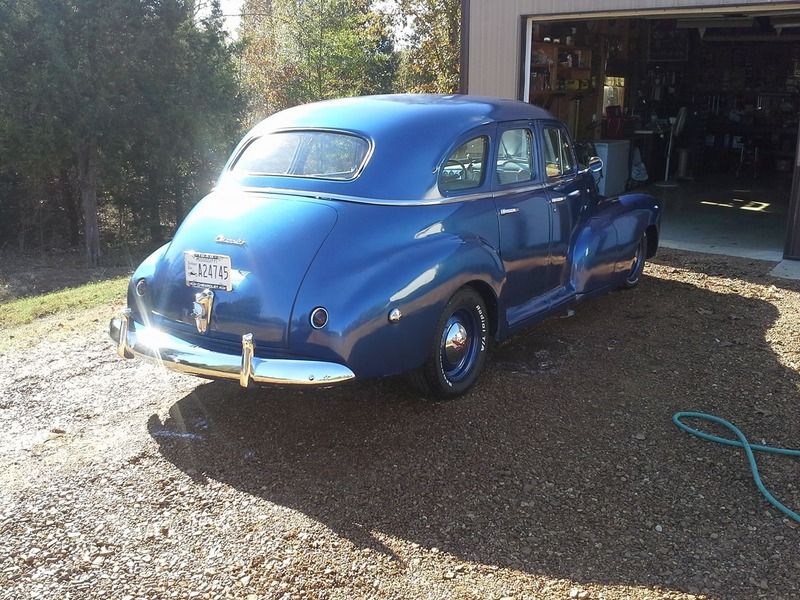

Now, since I forced you to read all that, on to the pictures.












If you have an apple and I have an apple and we exchange apples then you and I will still each have one apple. But if you have an idea and I have an idea and we exchange these ideas, then each of us will have two ideas.


Edited by CallMeChris on 02-17-17 01:51 AM. Reason for edit: No reason given.


rcr3
"13th Year" Silver Supporting Member
Posts: 2823
rcr3
Age: 65
Loc: Manheim Pa. U.S.A.
Reg: 11-24-02
02-17-17 05:09 AM - Post#2677095
    In response to CallMeChris

Man,that's a NICE ride!!!

'12 Cruze RS LTZ
'73 Nova hatchback Sold 12/23/12
'37 Chevy cp.SOLD!!6/7/14
'74 Nova Custom cp.
'73 Nova pro-street project
'00 Chevy Blazer
'00 S10 Ex cab
'06 Z71 Sierra Ex Cab
'67 Camaro survivor





Rustchips
"7th Year" Silver Supporting Member
Posts: 1011
Rustchips
Age: 80
Loc: DFW Texas
Reg: 02-24-05
02-17-17 08:02 AM - Post#2677110
    In response to CallMeChris

Good looking car. Is it a 48 or 47, the grill is 47.
Cleon

1928 Chevy Coupe
1942 Chevy Sport coupe
1955 Chevy Bel Air HTP
1970 El Camino
1990 F##d Mustang Convertible

Life is like a roll of toilet paper the nearer the end the faster it goes.



CallMeChris
Forum Newbie
Posts: 10
CallMeChris
Age: 39
Loc: Arkansas
Reg: 02-17-17
02-17-17 08:19 AM - Post#2677114
    In response to Rustchips

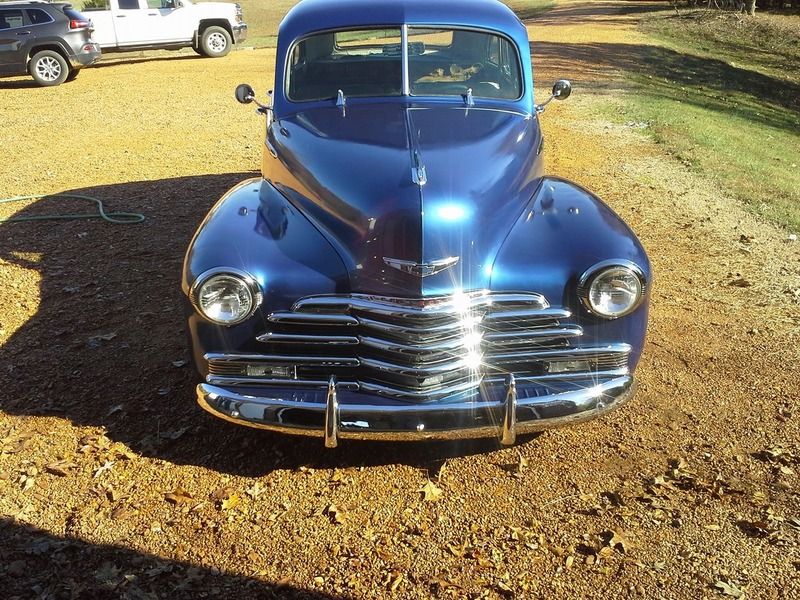

It's a 48. The original grill was missing the t bar and he found a brand new factory grill for a 47 that had never been installed in a warehouse somewhere. Polished the front and painted the back so it wouldn't rust. I like the looks of the 47 grill better, without the t bar it seems to flow smoother.

If you have an apple and I have an apple and we exchange apples then you and I will still each have one apple. But if you have an idea and I have an idea and we exchange these ideas, then each of us will have two ideas.



Tony
Founder & Grand PoohBah
Posts: 17300
Tony
Loc: Orange County CA.
Reg: 03-15-99
02-17-17 09:46 AM - Post#2677126
    In response to CallMeChris

Welcome aboard Chris !!

Happy with the help and support you got here?
Click >>here<< to become a Supporting Member or Donate






Rustchips
"7th Year" Silver Supporting Member
Posts: 1011
Rustchips
Age: 80
Loc: DFW Texas
Reg: 02-24-05
02-17-17 11:16 AM - Post#2677140
    In response to CallMeChris

I like the 47 Grill also. Has a cleaner look then the 48. Again, very nice car. Have fun!
Cleon

1928 Chevy Coupe
1942 Chevy Sport coupe
1955 Chevy Bel Air HTP
1970 El Camino
1990 F##d Mustang Convertible

Life is like a roll of toilet paper the nearer the end the faster it goes.



lofat46
Silver Supporting Member
Posts: 206
lofat46
Loc: Bloomingdale, IL
Reg: 08-12-13
02-17-17 04:03 PM - Post#2677166
    In response to CallMeChris

Nice job. Really like the shade of blue. What's it from? The Pontiac (?) tail lights look good. Have fun with it. My '46 four door was great when my kids were little.

1946 Chevy Fleetmaster 4-door Street Rod
1948 Chevy convertible (in-progress street rod)



CallMeChris
Forum Newbie
Posts: 10
CallMeChris
Age: 39
Loc: Arkansas
Reg: 02-17-17
02-17-17 04:23 PM - Post#2677169
    In response to lofat46

I have paint codes but I'm not sure what it came from. And yes, pontiac tail lights.

If you have an apple and I have an apple and we exchange apples then you and I will still each have one apple. But if you have an idea and I have an idea and we exchange these ideas, then each of us will have two ideas.



Jack Crain
Contributor
Posts: 823

Loc: Wichita Falls, Texas
Reg: 07-24-11
02-17-17 04:46 PM - Post#2677172
    In response to CallMeChris

Nice car. Looks really good. And welcome to the group

1946 Fleetmaster 4-dr Sedan with '57 235
Fenton Dual Exhaust and Intake
Dual Carter Webbers 2 barrel Carbs
HEI ignition
Front Disk Brake
T-5 Tranny



Keith_Knox
Moderator and "15th Year" Gold Supporting Member
Posts: 5579
Keith_Knox
Age: 76
Loc: Napa, Ca USA
Reg: 04-02-00
02-17-17 06:54 PM - Post#2677195
    In response to CallMeChris

Very good looking 48, have fun with it. I also do not like the T bar center piece. I took it off of my 48. If you look at it up close you can see where it was at. Doesn't bother me tho.

1948 Chevy Fleetmaster Coupe Purchased 6/2010. Stock with rebuilt 52 216 installed May 1966
1962 Ranchero Purchased 4/2017 221 V8 Automatic
1996 Chevy Monte Carlo Donated 6/16
2013 F150 Crew Cab



CallMeChris
Forum Newbie
Posts: 10
CallMeChris
Age: 39
Loc: Arkansas
Reg: 02-17-17
02-18-17 12:11 AM - Post#2677217
    In response to Keith_Knox

Thanks everyone, I've really fallen in love with the nose of this body style!

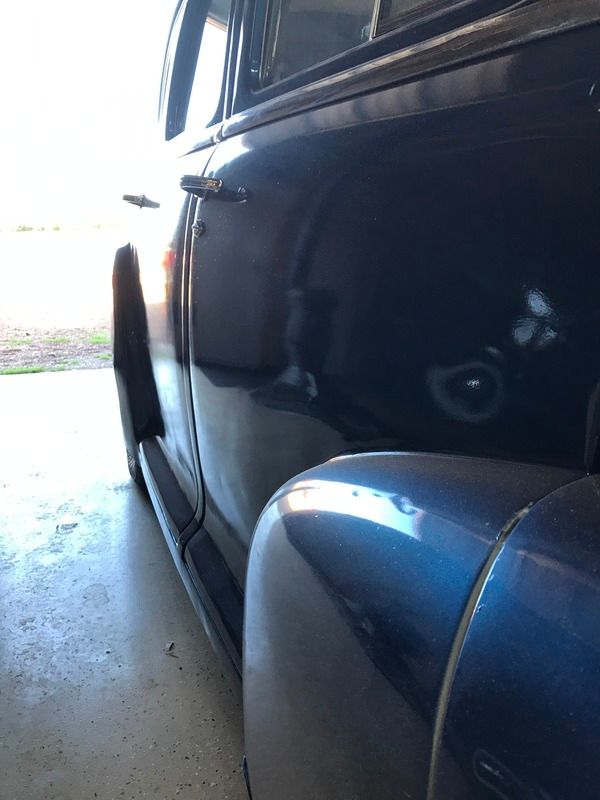

One of my first projects is going to be finishing the outside. This will include a little touchup work on the paint and then wet sanding the runs out and buffing the car. As you can see in this picture where the door meets the outside of the fender I have 2 problems going on. First off, paint was missed in the crack between the fender and door...and secondly where the door bubble rounds over the top the fender JUST makes contact with the door and has rubbed paint off. My plan is to remove the door(or would removing the fender work better here?), tape off the good paint, then sand, spray, and clear the spot. Then when I go back and wet sand the whole car I should be able to get it to blend pretty well. I need to get the fender adjusted first so it won't make contact afterwards though.



Any advice or words of wisdom on adjusting the fender?

I have a cheap spray gun and a compressor too small to paint a whole car but I think with as hidden as this spot is I can get it good enough with a little elbow grease so it doesn't stand out so bad.

If you have an apple and I have an apple and we exchange apples then you and I will still each have one apple. But if you have an idea and I have an idea and we exchange these ideas, then each of us will have two ideas.



CallMeChris
Forum Newbie
Posts: 10
CallMeChris
Age: 39
Loc: Arkansas
Reg: 02-17-17
02-18-17 12:20 AM - Post#2677218
    In response to CallMeChris

Also while I'm thinking about it, it has no hood springs and no prop rod. I was told the hood springs cause enough stress on the thin sheet metal of the hood that it actually warps and damages the hood. Does this sound right? Should I order a set of springs and run with it or figure out a way to fab a prop rod?

If you have an apple and I have an apple and we exchange apples then you and I will still each have one apple. But if you have an idea and I have an idea and we exchange these ideas, then each of us will have two ideas.



Rustchips
"7th Year" Silver Supporting Member
Posts: 1011
Rustchips
Age: 80
Loc: DFW Texas
Reg: 02-24-05
02-18-17 08:26 AM - Post#2677244
    In response to CallMeChris

Put the springs on. The springs on my '42 work fine and have not damaged the hood.
Cleon

1928 Chevy Coupe
1942 Chevy Sport coupe
1955 Chevy Bel Air HTP
1970 El Camino
1990 F##d Mustang Convertible

Life is like a roll of toilet paper the nearer the end the faster it goes.



knightfan2691
Dedicated Enthusiast
Posts: 6177
knightfan2691
Age: 43
Loc: Elgin IL
Reg: 11-18-02
02-18-17 07:00 PM - Post#2677328
    In response to Rustchips

Welcome, Chris ... looks fantastic!


Cort, www.oldcarsstronghearts.com
pig&cowValves.paceMaker * 1979 CC to 2003 MGM + 81mc
"Like a light in the dark" | Dan Seals | 'I Will Be There'




Keith_Knox
Moderator and "15th Year" Gold Supporting Member
Posts: 5579
Keith_Knox
Age: 76
Loc: Napa, Ca USA
Reg: 04-02-00
02-18-17 09:16 PM - Post#2677365
    In response to CallMeChris

I agree with putting the springs on. Mine has them and the hood stays up enough for normal work. If I need it open more, I have a broom handle that works just fine.

1948 Chevy Fleetmaster Coupe Purchased 6/2010. Stock with rebuilt 52 216 installed May 1966
1962 Ranchero Purchased 4/2017 221 V8 Automatic
1996 Chevy Monte Carlo Donated 6/16
2013 F150 Crew Cab



pyasher
Forum Newbie
Posts: 28

Loc: Columbus Ohio
Reg: 07-05-14
02-21-17 07:12 AM - Post#2677791
    In response to CallMeChris

Great car - like the 4 doors !





Broo102
"3rd Year" Silver Supporting Member
Posts: 432
Broo102
Loc: RANCHO CUCAMONGA, CA.
Reg: 09-30-14
02-21-17 10:27 PM - Post#2677943
    In response to CallMeChris

adjustment of the fenders come from a starting point.
align the hood to the cowl line, then the radiator distance to the hood's striker bolt so it sits and locks correctly. then the fenders to hood and the radiator brace, its all one puzzle, not an easy thing to accomplish!
welcome!

Thanks!
Bru
John 3:16
32 Chev. 5 Win. Sports Coupe
47 Chev. convertible in progress



Broo102
"3rd Year" Silver Supporting Member
Posts: 432
Broo102
Loc: RANCHO CUCAMONGA, CA.
Reg: 09-30-14
02-21-17 10:29 PM - Post#2677945
    In response to Broo102

PS I would put some sort of mag wheels on your ride, looks great though.
I have a glove box trim for sale if you want one

Thanks!
Bru
John 3:16
32 Chev. 5 Win. Sports Coupe
47 Chev. convertible in progress



CallMeChris
Forum Newbie
Posts: 10
CallMeChris
Age: 39
Loc: Arkansas
Reg: 02-17-17
02-24-17 11:53 AM - Post#2678368
    In response to Broo102

This trim piece?



Do you have the matching one for the drivers side also? I'd be interested for sure.

If you have an apple and I have an apple and we exchange apples then you and I will still each have one apple. But if you have an idea and I have an idea and we exchange these ideas, then each of us will have two ideas.



Broo102
"3rd Year" Silver Supporting Member
Posts: 432
Broo102
Loc: RANCHO CUCAMONGA, CA.
Reg: 09-30-14
02-25-17 11:13 PM - Post#2678567
    In response to CallMeChris

yes, I think so. I know I have the glove box one

Thanks!
Bru
John 3:16
32 Chev. 5 Win. Sports Coupe
47 Chev. convertible in progress



CallMeChris
Forum Newbie
Posts: 10
CallMeChris
Age: 39
Loc: Arkansas
Reg: 02-17-17
02-26-17 03:48 AM - Post#2678571
    In response to Broo102

Message me with a price shipped to 72364 when you get time please.

If you have an apple and I have an apple and we exchange apples then you and I will still each have one apple. But if you have an idea and I have an idea and we exchange these ideas, then each of us will have two ideas.
