I haven't wired a car from scratch since my 67 4x4 Mustang I built many moons ago... couple questions.
My High Torque Starter Solenoid has 3 posts, one large lug connected to the Starter itself, another large lug I assume for the battery cable and the 3rd is a small post I assume goes to my starter switch, which I'll run through a Clutch Safety switch.
I assume the above is correct for a LS motor?
14 gauge wire big enough?
Can I use a stock brake light switch for the neutral safety?
Reason for the bottom item is I can copy the bracket easily enough given there's already one there.
Thanks
Charlie
"Yeah, I'm just going to clean it up and make it a driver." May 2002
'57 BelAir Conv. GMPP LSX/L92-440 T-56 (almost...)
'74 K5 Blazer 4x4
'09 Avalanche LTZ |
|
This
Forum is Sponsored by
bobsclassicchevy.com
|
|
|
 Charlie57
"4th Year" Silver Supporting Member
Posts: 2935
Loc: Lebanon, Tennessee
Reg: 03-30-08
|
06-24-12 03:14 PM - Post#2240848
In response to CharlieC
Charlie,
I am wiring my car with a AAW kit. I have the engine stuff wired with the battery in the trunk and a cut off switch. Your starter sounds just like mine, the small wire goes to the ignition switch. I do not know how to tell the gauge size.
Charlie
|
 acardon
"9th Year" Silver Supporting Member
Posts: 9458
Loc: DFW TEXAS
Reg: 03-25-05
|
06-24-12 03:38 PM - Post#2240862
In response to CharlieC
Charlie, 14 gauge will be OK for the starter solenoid, but the brake light switch will not carry the current of the solenoid very long. Lokar has a push button switch that is designed to carry the load. .... Link to NSS switch.
Don
66 Corvair (driving)
57 2dr HT (restoring)
56 2dr HT (waiting to be restored)
|
|
 Rick_L
Honored Member
Posts: 24741
Loc: Katy, Tx, USA
Reg: 07-06-00
|
06-24-12 03:44 PM - Post#2240864
In response to acardon
Are you sure 14 gauge is big enough for the solenoid wire? I see it 12 gauge in most of the stock and aftermarket stuff I look at.
Voltage drop on this wire is a big deal and can cause a no crank condition if it drop too low. Better too big than too little.
Another way to do the clutch switch is through a relay. Then you could use a light duty switch.
|
 Henrys57wagon
Canadian Regional Coordinator &"7th Year" Silver Supporting Member
Posts: 3038
Age: 63
Loc: Woodlawn, (Ottawa) On. Ca...
Reg: 04-15-06
|
06-24-12 04:43 PM - Post#2240889
In response to Rick_L
CharlieC, is there a neutral switch on the trany? My Tremic has one from the factory, I will have to look at the wiring diagram that came with my wiring kit to see what is supplied, good day.
|
CharlieC
Senior Member
Posts: 1747
Loc: Flower Mound, TX,
Reg: 03-27-02
|
06-24-12 06:47 PM - Post#2240934
In response to Henrys57wagon
Henry,
VSS, lockout and reverse lights are all I think is on there. Would be nice if there's a way to add it.
Rick,
If the T56 based switch doesn't pan out, I'll ask for some specifics. I'll go ahead and add a bracket to the pedal hanger.
Charlie
"Yeah, I'm just going to clean it up and make it a driver." May 2002
'57 BelAir Conv. GMPP LSX/L92-440 T-56 (almost...)
'74 K5 Blazer 4x4
'09 Avalanche LTZ |
|
 farrel 57
"5th Year" Silver Supporting Member
Posts: 59
Age: 65
Loc: Winchester,Tn
Reg: 11-23-08
|
06-25-12 11:01 AM - Post#2241152
In response to CharlieC

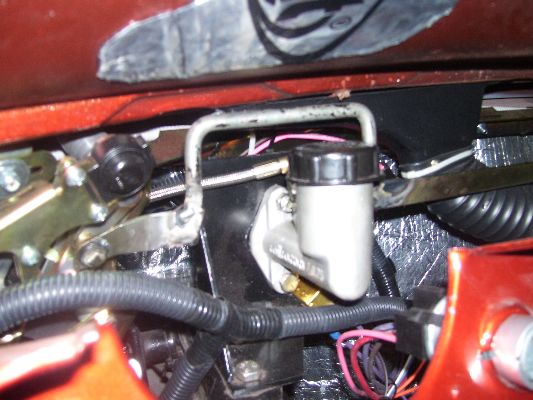

I used a starter push button for my neutral switch.I mounted it on the clutch master cylinder, where the lever hits it when the clutch is pressed.AAW used a purple#14 from the switch to solenoid.I added a second solenoid mainly for the ease of wireing.
|
CharlieC
Senior Member
Posts: 1747
Loc: Flower Mound, TX,
Reg: 03-27-02
|
06-25-12 01:22 PM - Post#2241186
In response to farrel 57
I'm glad you posted that pic of your MC and Wiper mod you had to do. I'm trying to make it work w/o doing it, but glad to see I was thinking the right way if I do need to make the mod.
Charlie
"Yeah, I'm just going to clean it up and make it a driver." May 2002
'57 BelAir Conv. GMPP LSX/L92-440 T-56 (almost...)
'74 K5 Blazer 4x4
'09 Avalanche LTZ |
|
