I’m finely putting the front fenders back on my car and I have two pieces left over! I think they belong at the back of the fender at the bottom but I can’t see where (Seniors moment) Does anyone recognize these and were they belong
Canuck
|
This
Forum is Sponsored by
bobsclassicchevy.com
|
|
|
 kensluys
"7th Year" Silver Supporting Member
Posts: 562
Loc: Bellingham, WA, USA
Reg: 04-18-01
|
04-21-12 02:02 PM - Post#2217609
In response to canuck

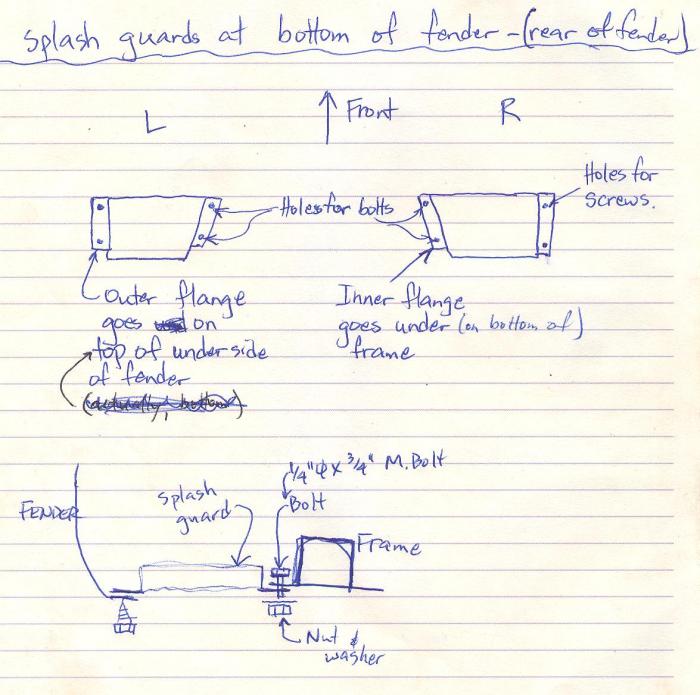

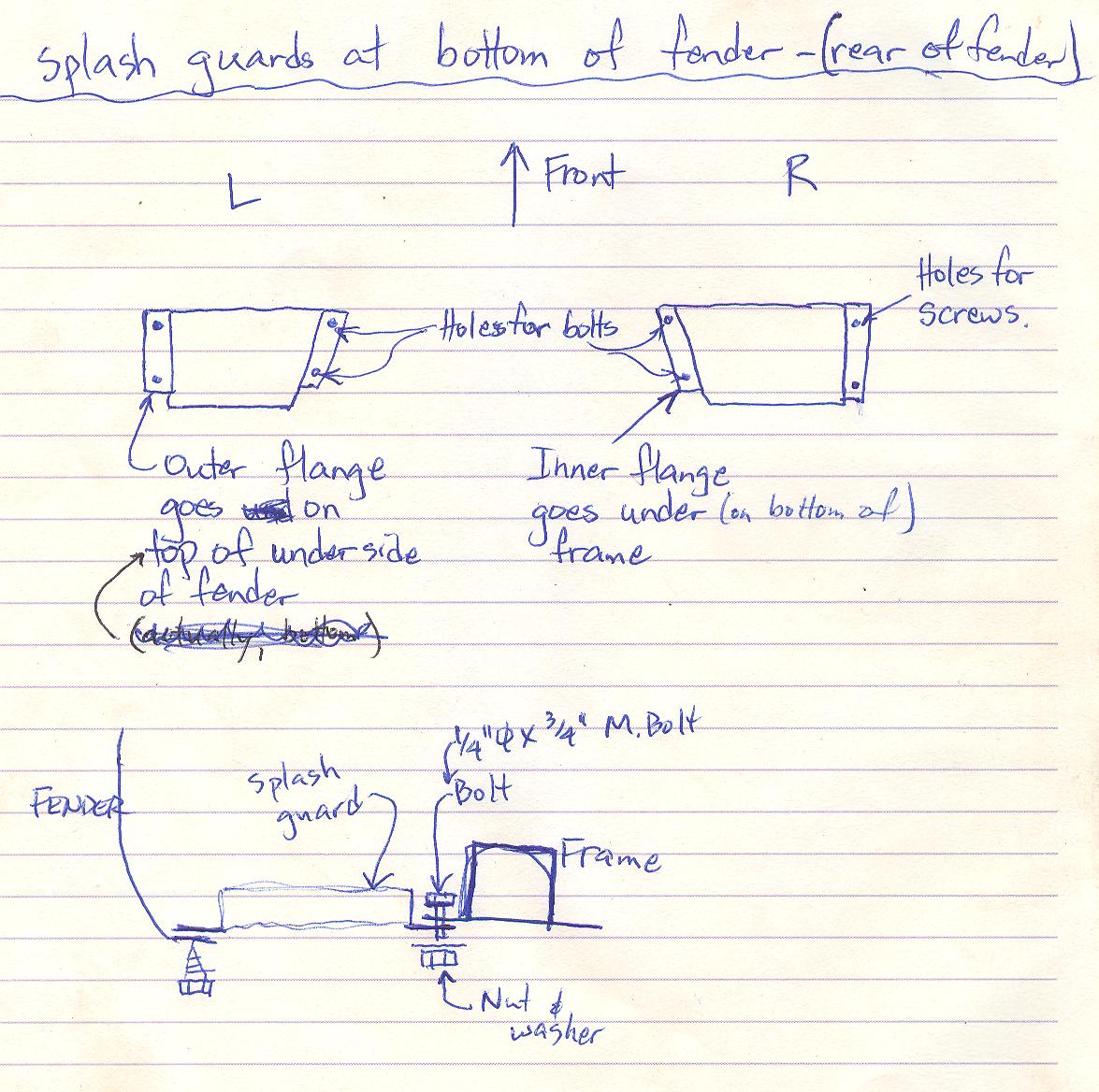

I think they're called a baffle, and they go at the bottom of the front fenders, just in front of the doors. Here is a drawing I made when I took mine off:
When I made the drawing I didn't know that GM called them a baffle, so I just called them what they seemed to be - splash guards.
| 1951 BelAir - Bought it in 1969, sold it in 1970, found it and bought it again in 1999. |
|
kensluys
"7th Year" Silver Supporting Member
Posts: 562
Loc: Bellingham, WA, USA
Reg: 04-18-01
|
04-21-12 02:12 PM - Post#2217612
In response to kensluys

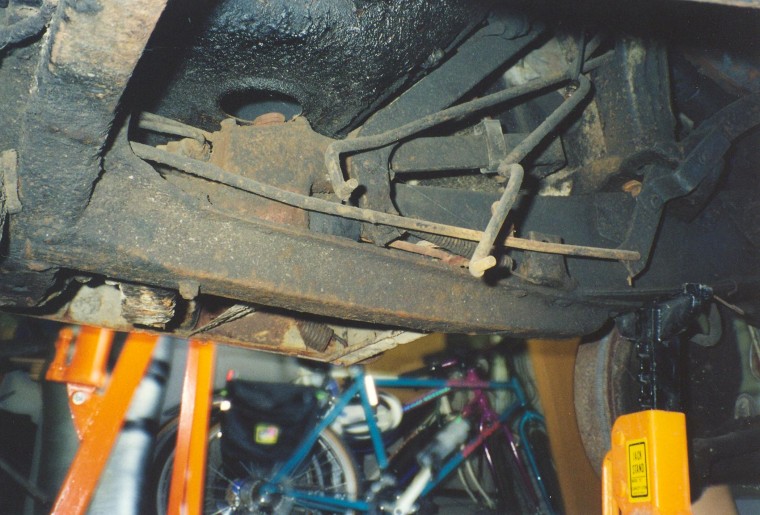

I just realized that my drawing doesn't really show where they go in relation to the fender. Here is a photo I took just before disassembly. You can just see the left baffle on the other side of the frame rail.
There was a loose spring between the fender and the baffle that you can see in the picture. Of course, I can't find the spring now.
| 1951 BelAir - Bought it in 1969, sold it in 1970, found it and bought it again in 1999. |
|
Lead sled
Frequent Contributor
Posts: 1510
Age: 53
Loc: WALTON,NY.
Reg: 11-04-09
|
04-21-12 07:48 PM - Post#2217727
In response to canuck
That's where they go.IN front of the door,and behind the LARGE fender baffle.one side fastens to the bottom of fender,other to the frame.there should be a flat piece of channel with 5-6 bolts that sandwich the front of baffles to the car.
51 BelAir 2drht 52 trim.Basically stock 67 Camaro SS350/295hp Turbo Fire Edelbrock 1405,Saginaw 4spd/355 geared 55/6 Chevy rear.I just finished all the bodywork/paint myself.2,1st place trophies so far
http://www.picturetrail.com/bris51deluxe
|
|
RICKYRICARDO
Contributor
Posts: 185
Age: 43
Loc: Milwaukee WI
Reg: 10-31-11
|
04-25-12 01:08 PM - Post#2219022
In response to Lead sled
where did you get that page?
Winter is a grand old time,
there are no ifs or buts/But remember all that salt and grime/Can rust your bolts and freeze your -... |
|
 Dean50
"6th Year" Gold Supporting Member
Posts: 685
Loc: Michigan
Reg: 01-02-07
|
04-25-12 05:13 PM - Post#2219103
In response to RICKYRICARDO
http://chevy.oldcarmanualproject.com/
Look in the 49-54 Master Parts Catalog or the Fisher Body Catalog.
Very interesting site. Thanks to Keith Hardy.
|
