I am cross posting this but I figure a lot of you here would enjoy it.
It is a 72 Chevy C/30 that over the last 2 weeks I have converted to a 4x4 and have been working on installing a Cummins 12 valve in. These are pics of my progress.
The truck before I tore it down:
The bare frame as it was 2 weeks ago with a busted front suspension:
3D rendering of the new front cross member/core support:
The piece becoming reality:
Test fit:
Now standing on a Dana 60!:
Built a cab lift on my cherry picker, works like a dream!:
|
|
MrBeast
Contributor
Posts: 238
Loc: Houston, Texas
Reg: 07-08-09
|
03-26-11 11:31 AM - Post#2067509
In response to MrBeast
Set the cab on the frame for the first time in 3 years:
(I love the stance over where it was!)
Test fit the Cummins:
Trimmed the frame:
Blasted the front of the frame:
Pulled it back apart:

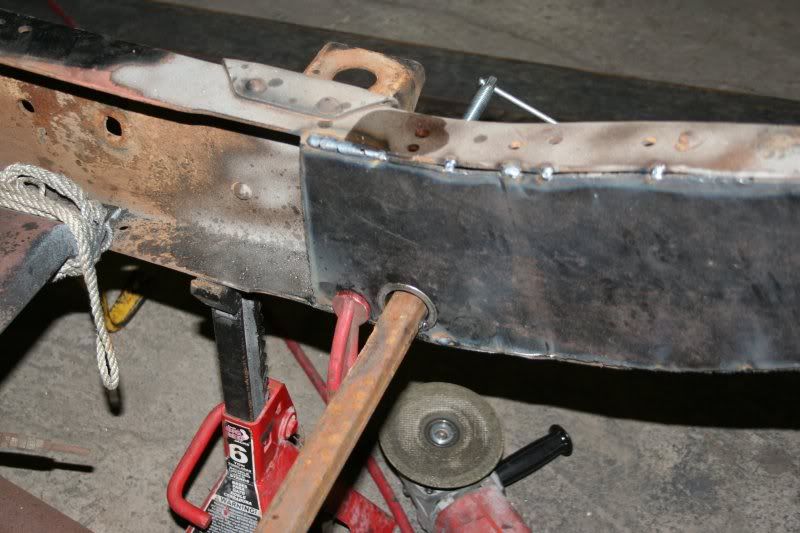

Boxed it in:
|
MrBeast
Contributor
Posts: 238
Loc: Houston, Texas
Reg: 07-08-09
|
03-26-11 11:31 AM - Post#2067510
In response to MrBeast

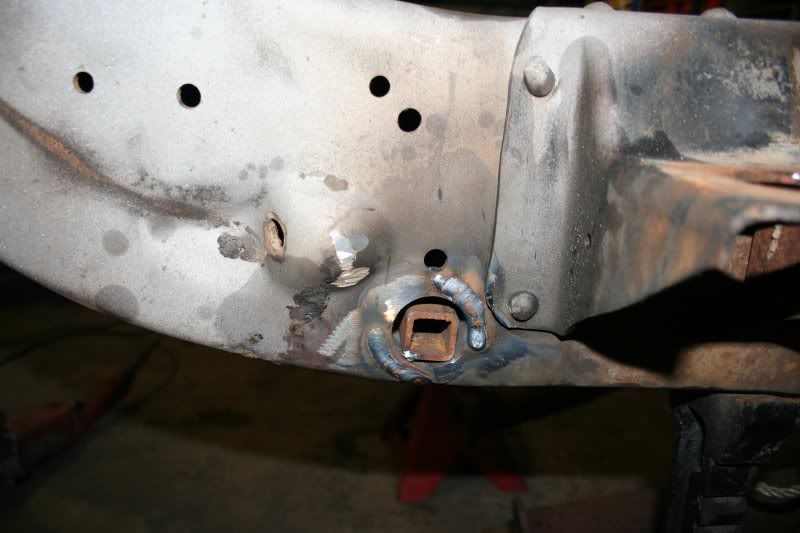

Added rear shackle hangers:
Made some motor mounts and stuffed a Cummins in it!
Now im waiting on parts that are on back order.
|
MrBeast
Contributor
Posts: 238
Loc: Houston, Texas
Reg: 07-08-09
|
03-26-11 11:32 AM - Post#2067511
In response to MrBeast
Videos:
YouTube - 72 Chevy C/30 4x4 Cummins Conversion
YouTube - Getting Closer to Cummins Install
YouTube - Cummins Test Fit
YouTube - 72 Chevy Dually, Cummins is in!!!
If you like them please rate and subscribe! :grinpimp:
|
MrBeast
Contributor
Posts: 238
Loc: Houston, Texas
Reg: 07-08-09
|
03-26-11 01:50 PM - Post#2067556
In response to MrBeast
Just a small update, I found and ordered some emblems for the truck.
Putting these on the front fenders where the 8-396 emblems would go:
Putting these on the fender in the appropriate position:
This is the color I have decided on.
I think its going to look pretty damn sharp!
|
MrBeast
Contributor
Posts: 238
Loc: Houston, Texas
Reg: 07-08-09
|
03-26-11 02:22 PM - Post#2067570
In response to MrBeast
Updated flat bed rendering:
|
MrBeast
Contributor
Posts: 238
Loc: Houston, Texas
Reg: 07-08-09
|
03-26-11 05:32 PM - Post#2067682
In response to MrBeast
Got the front clip on!
Here is the video:
http://www.youtube.com/watch?v=1mx-7DuJdRY
|
MrBeast
Contributor
Posts: 238
Loc: Houston, Texas
Reg: 07-08-09
|
03-27-11 10:52 PM - Post#2068363
In response to MrBeast
This is how the motor mounts were built:
After a ton of measurements/lots of thought I came up with a 3D CAD file.
Then went to school and cut them out
http://www.youtube.com/watch?v=IePKPhsDmTo
And welded em out.
I am still going to be adding a cross member that bolts in that will go under the engine. It will be removable so as that I can drop the oil pan with ease if I ever need to change the oil pump or something like that.
|
