 mahlmann
"3rd Year" Silver Supporting Member
Posts: 483
Loc: Sunnyvale, CA
Reg: 01-20-11
|
 06-14-12 09:17 AM - Post#2237067
Can anyone tell me how the parking brake cables fasten to the rear backing plates? There are 2 holes in the cable brackets and 2 holes in the backing plate, but I don't see how to fasten them together. I couldn't find any pages in the parts catalogs or shop manuals that illustrate these parts. I'm thinking that maybe they have to be put together with the brake drums removed. If anyone can point me to a picture/diagram or maybe just crawl under and take a look, I would be most grateful.
By the way, the stainless parking brake cables I got from Inline Tube were of excellent quality and workmanship. NICE parts!
Thanks for your help folks! I may get this running by wedding time in September after all!
Mike Ahlmann
Sunnyvale, CA
|
|
This
Forum is Sponsored by
bobsclassicchevy.com
|
|
|
dsacton
Contributor
Posts: 383
Loc: Boulder, CO
Reg: 11-01-11
|
06-14-12 12:05 PM - Post#2237119
In response to mahlmann
Mike,
I'm afraid I am confused by the terminology. Here are some pictures from under my '54. If you can direct me to the exact area you are interested in, I'll snap a picture and post it (It's parked outside).
http://www.my54chevy.com/page46/page48/page48.html
http://www.my54chevy.com/page46/page49/page49.html
Scott
|
mahlmann
"3rd Year" Silver Supporting Member
Posts: 483
Loc: Sunnyvale, CA
Reg: 01-20-11
|
06-14-12 01:01 PM - Post#2237138
In response to dsacton
There is a 2-piece flat bracket the goes around the parking brake cable and bolts to the outside of the brake backing plate where the cable enters into the brake stuff under the brake drum. I'd like to know if you see a bolt with a nut on it, just a bolt head, or something else that holds the plate to the backing plate. If you have your head near the bottom of the diff and you turn and look at either brake backing plate where the cable inters, that's what I'm trying to "see".
Thanks for the help.
Mike Ahlmann
Sunnyvale, CA
|
|
 Idaho
"4th Year" Silver Supporting Member
Posts: 221
Loc: Upstate New York
Reg: 03-02-07
|
06-14-12 04:50 PM - Post#2237202
In response to mahlmann

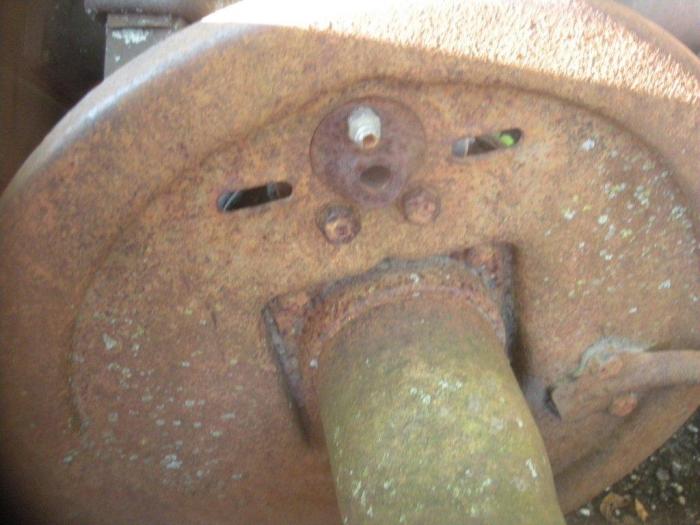

Should look like this, you'll see the heads of the bolts, the nuts go on the inside of the backing plate. there's also a dust gasket required between the backing plate and the ER bracket.
| 1953 210 Chevy convertible, 1956 Gmc pickup, 1952 MGTD convertible, 1973 HD Superglide, 1972 HD Electraglide, 2002 HD Heritage Softail Springer. |
|
dsacton
Contributor
Posts: 383
Loc: Boulder, CO
Reg: 11-01-11
|
06-14-12 05:55 PM - Post#2237221
In response to mahlmann
Mike,
I snapped a bunch of pictures. Let me know if the one from Idaho doesn't tell you all you need to know. It was hard to get good pictures with the leaf springs in the way.
|
mahlmann
"3rd Year" Silver Supporting Member
Posts: 483
Loc: Sunnyvale, CA
Reg: 01-20-11
|
 06-14-12 06:18 PM - Post#2237234
In response to Idaho
That's it in the lower right corner. Looks like 5/16" bolts with nuts inside (as you pointed out). I took the old cables apart and I think the dust gaskets may be made of leather.
Thanks for the picture. Now all I have to do is put it back together!
You gotta love the helpful folks on ChevyTalk!
Mike Ahlmann
Sunnyvale, CA
|
|
Idaho
"4th Year" Silver Supporting Member
Posts: 221
Loc: Upstate New York
Reg: 03-02-07
|
06-15-12 09:15 PM - Post#2237668
In response to mahlmann
The "gaskets" they sell you today are crap. I should have just made my own out of something. They are like very thin pieces of foam, but they did appear to seal well enough to get the job done. I'd rather have the leather!
| 1953 210 Chevy convertible, 1956 Gmc pickup, 1952 MGTD convertible, 1973 HD Superglide, 1972 HD Electraglide, 2002 HD Heritage Softail Springer. |
|
mahlmann
"3rd Year" Silver Supporting Member
Posts: 483
Loc: Sunnyvale, CA
Reg: 01-20-11
|
06-15-12 11:55 PM - Post#2237709
In response to Idaho
The original gaskets came out in pretty good shape. I thought they weer made of leather. I used an old thick leather belt to cut some duplicates and soaked them in linseed oil. Should last longer than I will!
Mike Ahlmann
Sunnyvale, CA
|
|
jaydogg1
Forum Newbie
Posts: 50
Age: 50
Loc: Southern Oregon
Reg: 09-18-11
|
06-16-12 09:03 AM - Post#2237803
In response to Idaho
The replacement gaskets i got from the Filling Station are thick felt and seem to seal up pretty well....time will tell.
|
 rrausch
"12th Year" Silver Supporting Member
Posts: 9713
Loc: L.A, Cal. & St. Louis...
Reg: 04-07-03
|
06-16-12 10:33 AM - Post#2237831
In response to jaydogg1
Gaskets??? Gaskets??? Mine didn't have no stinkin' gaskets. Guess I'll have to take 'em off and make something up.
1953 210 Convertible, 261 with dual Carter YF 966S carbs, P.S., Remote Bendix P.B. Booster... shade-tree restoration about done.
|
|
jaydogg1
Forum Newbie
Posts: 50
Age: 50
Loc: Southern Oregon
Reg: 09-18-11
|
06-16-12 05:45 PM - Post#2237980
In response to rrausch
yeah
the originals were thin dried out leather or something like that but were dust when i took the parking brake off the rear drums. The replacements are thicker felt and the shop manual actually mentioned it in one section....somewhere.....
|
